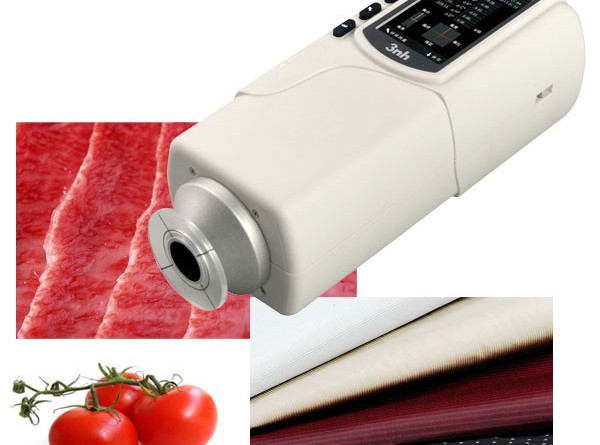

3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.

1. 20mm measuring aperture can test objects with surface stripe accurately.
2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.
3. Double Locating: Illuminating locating and cross locating.
4. Adopting new optical path and dynamic integration time can test more stable and accurate.
5. 45°/0° optical geometry structure, considering the effects of surface features.
6. Annular illumination design, suitable for polarizing material.
7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
8. Configuring CQCS3 software — connect PC computer to realize more functions.

• Illuminating/Viewing Geometry : 45°/0°
• Measuring Aperture: Φ20mm
• Special Function: Especially suitable for testing surface stripe and wet products
• Locating: Illumination Locating/Cross Locating
• Detector: Silicon photoelectric diode
• Locating: Illuminating Locating/Cross Locating
• Color Space: CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
• Color Difference Formula: △E*ab; △L*a*b*; △E*C*h*
• Light Source: D65
• Light Source Device: LED blue light excitation
• Errors Between Each Equipment: ≤0.50ΔE*ab
• Storage: 100pcs standards 20000pcs samples
• Repeatability: Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
• Weight: 500g
• Dimension: 205×67×80 mm
• Power source: Rechargeable lithium-ion battery 3.7V@3200mAh
• Lamp Life: 5 years, more than 1.6 million measurements
• Charging Time: First charging time is 8 hours–100% electricity
• PC Software: CQCS3 Software
• Printer (optional): Miniature thermal printer
