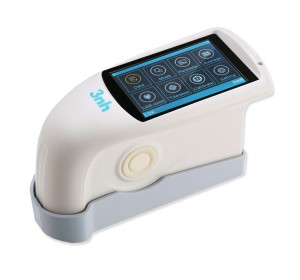

NHG Series Gloss Meter

NHG Series Gloss Meter

TEN FEATURES (International Standard)
  • Concise Appearance;
  • Touch Screen;
  • Multiple Functions;
  • Large Capacity;
  • Stable Performance;
  • High Precision;
  • Input Data Manually;
  • Display Multi-group Testing Data Simultaneously;
  • PC software with More Extend Functions;
  • Built-in Rechargeable Battery.

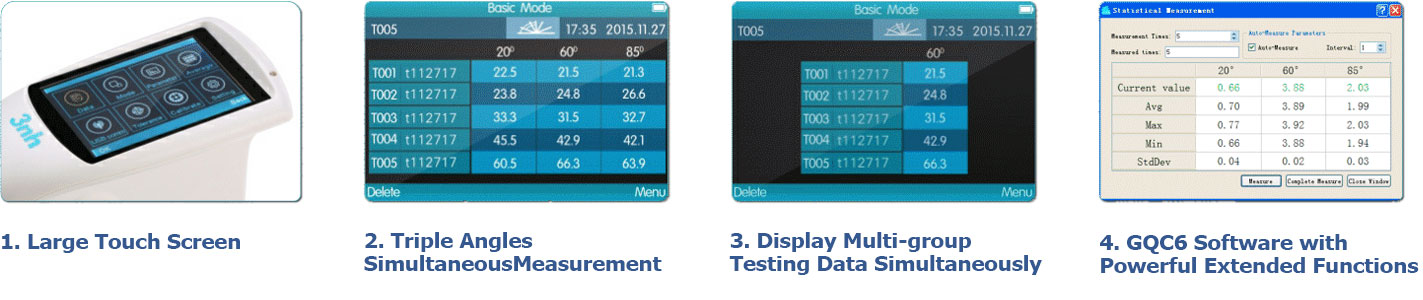

Product Characteristics

Application

Specifications

Model
NHG268 Tri-Angle Intelligent Gloss Meter
NHG60 Single Angle Intelligent Gloss Meter
NHG60M Small Aperture Gloss Meter
Measuring Angle 20° 60° 85° 60°
Standard ISO 2813, GB/T 9754, ASTM D 523, ASTMD 2457
Characteristics Apply to paint, ink, coating, electroplate, plastic, electronic, printing, paper, furniture, ceramic, hardware industries, etc. for glossiness measurement and gloss data transmission. Measuring modes: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software). Display 5 sets of test data. Input glossiness value manually.
Measuring Area (mm) 20°:10×10, 60°:9×15, 85°: 5×36 9×15 1.5×2
Measuring Range 20°:0-2000GU 60°:0-1000GU 85°:0-160GU 0-1000GU
Division Value 0.1GU
Range 0-10GU 10-100GU 100-2000GU 0-10GU 10-100GU 100-1000GU
Repeatability ±0.1GU, ±0.2GU, ±0.2%GU
Reproducibility ±0.2GU, ±0.5GU, ±0.5%GU
Deviation ±1.2, ±1.2% ±1.5, ±1.5%
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Measuring Time 0.1S 0.5S
Weight 350g
Dimension L*W*H=160x75x90mm
Battery 3200mAh Li-ion Battery , >10000 times(within 8 hours)
Display TFT 3.5 inch, touch screen
Interface USB/RS-232
Storage Basic Mode: 1000, Statistic Mode: 5000, Continuous Mode: 5000
Software GQC6 Quality Control Software with QC report printing function and more extended functions
Operation Temperature 0~40℃（32~104°F）
Storage temperature -20~50℃（-4~122°F）
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB Cable, User Manual, GQC6 software CD, Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.

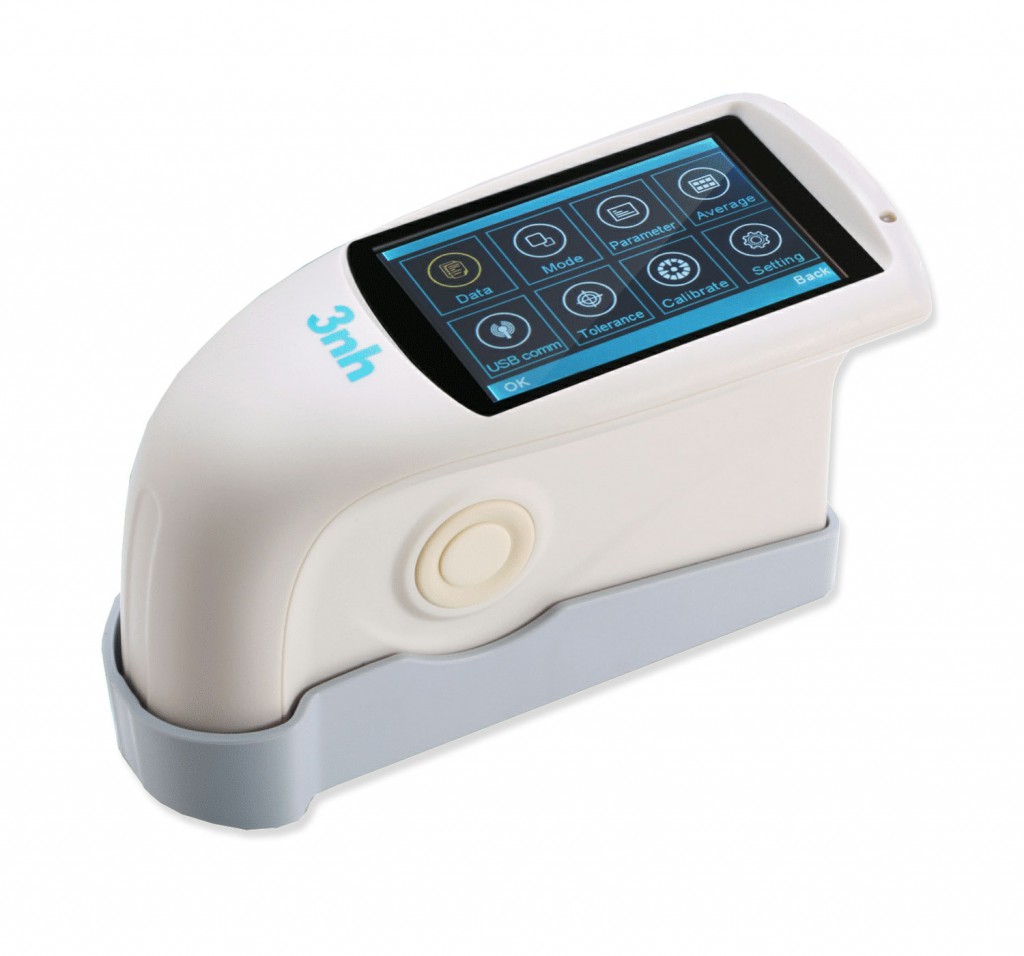

NHG268 Series Gloss Meter Gallery

NHG60 Series Gloss Meter Gallery

NHG60M Series Gloss Meter Gallery
