ARIATec provides ionizer bar and ionizer blower. the following is the products for your reference.
Contact us

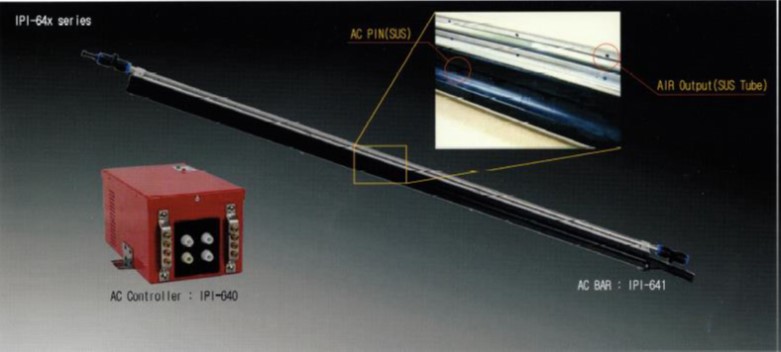

AC Ionizer Bar IPI-64x Series
AC Ionizer Bar IPI-64x Series
Industrial AC type Ionizer
Industrial ionizer using high rate currency and eliminate electro-static charge
Not like general ionizer using low currency.
It can be used at film, vinyl, paper, cable product etc.
In these products production generate high electro-static charge, and can
Damage not only product but operator.
Industrial AC type Ionizer features
Small Pin worn out
Low risk of electric shock due to indirect method by vortex.
Simple install and operation
Max 4 ionizer can be installed on controller
Customizing length is available.
Metal Sintered Dicing Blades
Metal Sintered Dicing Blades
BGA
Soft Alumina
TiC
LTCC
Ferrite
Blade thickness varies from 3 mil to 60 mil (depending on diamond grit size)
Diamond grit size ranges from 2 microns to 70 microns (depending on blade thickness)
Related documents
Metal Sintered blades brochure
Dicing blades

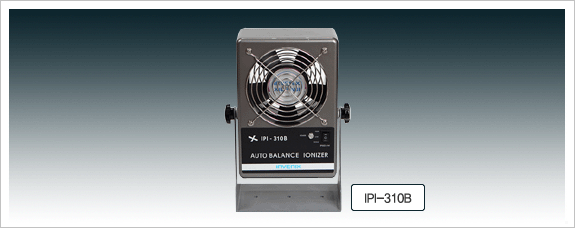

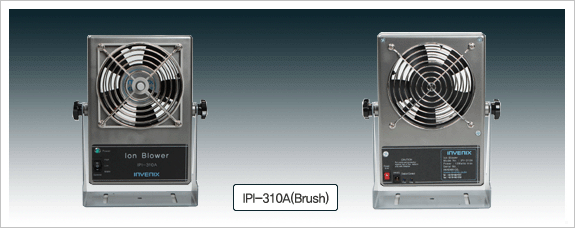

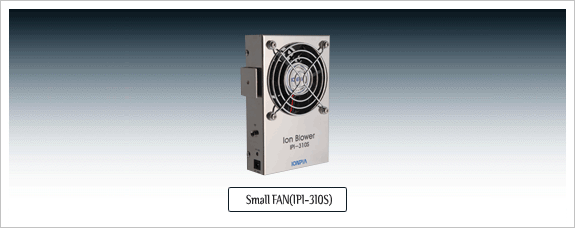

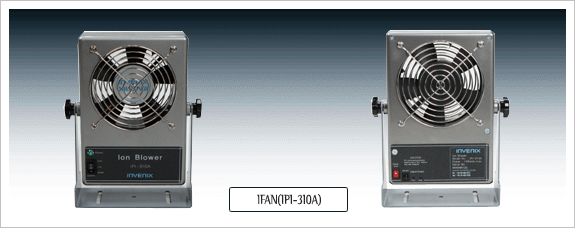

Desktop Ion Blower IPI-310x Series
Desktop Ion Blower IPI-310x Series
| Item | Specification | 310S | 310B | 310A | 310A (Brush) |
| Input V | DC24V (Adaptor input 75~275V,) Max. 6W | o | (75~230V)8W | o | o |
| Ion Generation | Steady-state DC | o | o | o | o |
| Output control | Ion generation adjustable | o | o | o | o |
| Blow speed/control | high: 105cfm, low58cfmHigh: 3.5m/s, Low : 1.5m/s | fix 30cfm | o | o | o |
| o | H: 4.5m/s | o | o | ||
| Signal | Power(Green LED), Alarm(red LED) | o | o | Power: G | Power: G |
| Decay time | Within 3secs (distance 300mm) | o | o | o | o |
| Alarm | Red LED(ion balance system error) | o | o | Optional | Optional |
| Exterior | ABS | SUS | o | o | o |
| Point material | Tungsten(99.99%) | o | o | o | o |
| Ion Balance | +/- 5V or Less(Distance 500mm) | o | o | o | o |
| Pin clean tool | Pin cleaning brush(changeable optional part) | x | x | x | o |
- Warranty: 18 months
- 3 steps fan speed control: for 310A type
- Ion balance error showing: 310B

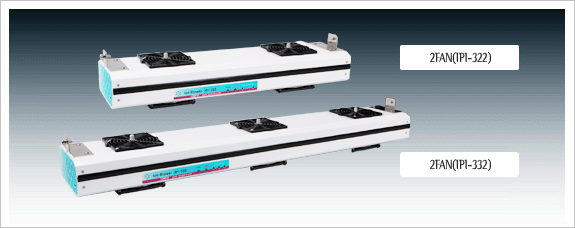

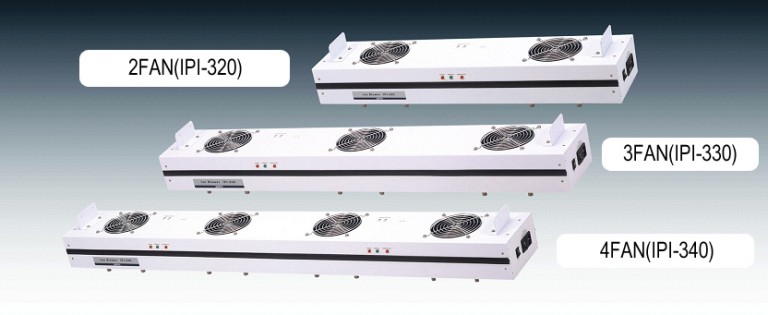

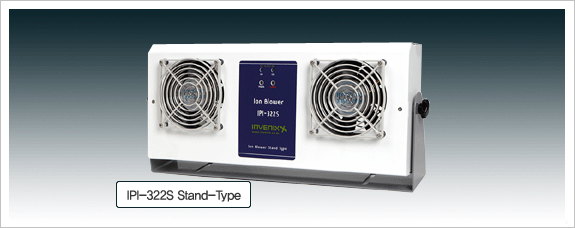

Overheat Ion Blower IPI-3×2(S) Series
Overheat Ion Blower IPI-3×2(S) Series
| Item | Specification | Remark |
| Input V | 75~275V, 50/60Hz, Max. 40W | |
| Ion Generation | Steady-state DC | Impulse HV unit |
| Output control | Ion generation q’ty auto control of each fan module | |
| Blow speed | Max. 6M/secs | |
| Signal | Power(Green LED), Alarm(red LED) | |
| Decay time | Within 5 secs(distance 600mm, flow speed max) | |
| Alarm | Error for auto ion generation q’ty control error | Alarm detect |
| Exterior | AI | |
| Point material | Tungsten(99.99%) | |
| Ion balance control | Ion q’ty control/module(ch1, ch2, ch3) | Closed-loop control system |
| PLC output | Fan defect, HV unit defect(Optional) | DC 24V, below 10mA |
| Ion Balance | +/- 3V(humidity 41~46%, Pin cleaning 2weeks condition) | Distance 600mm |
| Pin clean tool | Pin cleaning brush(changeable optional part) | Fan grill change type |

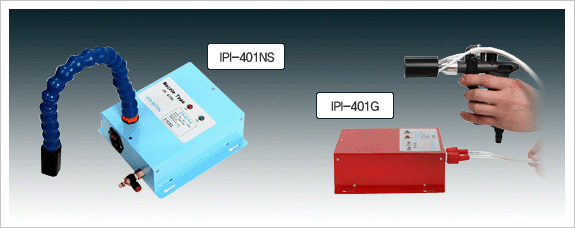

Spot Ion Nozzle & Gun (IPI-410x Series)
Spot Ion Nozzle & Gun (IPI-410x Series)
Specifications
- Input V: Voltage 75-275 VAC max. 6 Watts
- Ion Generation: Steady-State DC
- Output control: Ion generation adjustable
- Point: Titanium , Tungsten
- Flexible hose : 550 mm (300~1000mm), ABS (401G : X)
- L E D : Positive – Red, Negative – Green
- Air pressure: Max. 0.5MPa(Speed Controller, 8Ø-fitting )
- Ion balance: ±50V or Less(300mm distance)
- Decay time: 3.0sec or Less(300mm decay distance)
- Exterior: SUS
| Model | Controller | IPI-511 | |
| Nozzle Header | IPI-411N(HV Power) | IPI-411NS(HV Power) | |
| Inut V/current consumption | 24VDC ±10%, below 300mA | ||
| Ion Generation | Pulse-DC Switching Method | ||
| Ion Generation | Ion generation q’ty auto control of each fan module | ||
| Pin point | Tungsten(99.99%) | ||
| Air supply* | 0.01MPa ~0.3MPa (Clean Dry Air : CDA) | ||
| Alarm signal | NPN open-collector 100mA (max 30V) | ||
| Ion Balance** | Average Voltage : ±20V 이내 (Distance :100mm) | ||
| Discharge range(300mm) | 0.03m2 (dia :200mm) | 0.1m2 (dia. :400mm) | |
| Decay time(air : 0.3MPa) | within 1.0(300mm) | Within 1.0 s (300mm) | |
| Exterior | ABS | ||
| Size | IPI-511 | 67(W) × 123(D) × 45(H) ㎜ | |
| IPI-411N.NS | 200(W) × 40(D) × 38(H) ㎜ (with bracket) | ||
| Cable length | Controller – HV power 500,1000mm | HV Power – Nozzle Header 500,1000,2000mm | |
| Warranty | 18 months (Header Pin : 12 month, change and use) | ||
* CDA(Clean Dry Air) : No humid.
** Measurement : Trek 156A/1, Plate Size : 150×150mm, Air Pressure : 0.05MPa

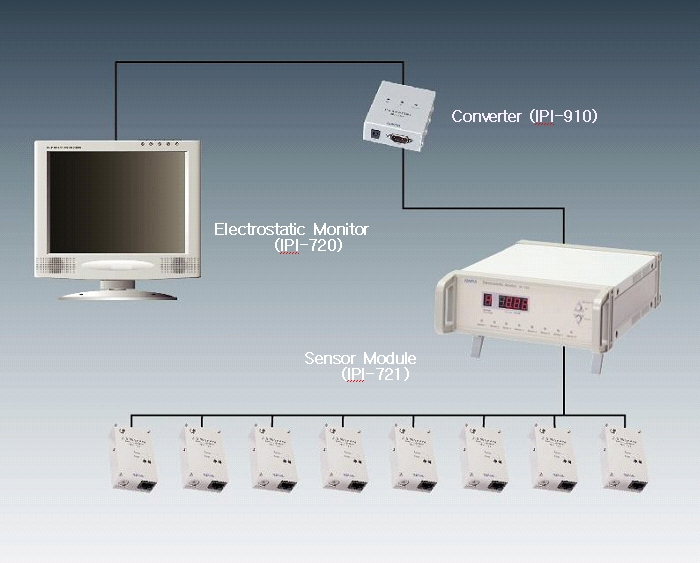

Electrostatic Monitoring System IPI-700 Series
Electrostatic Monitoring System IPI-700 Series

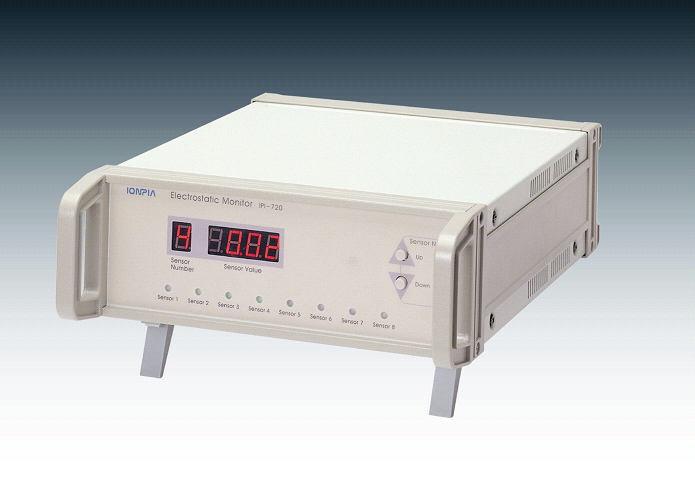

Monitor IPI-720

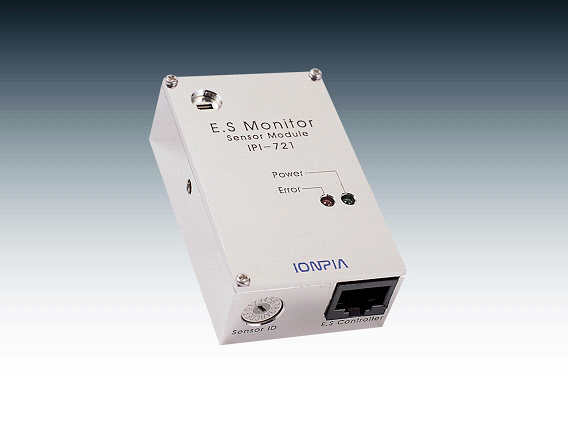

Sensor module IPI-721

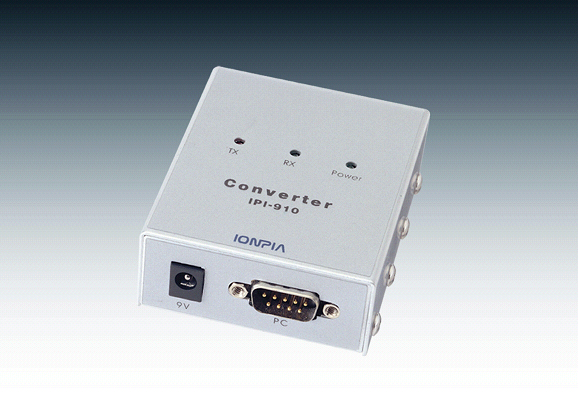

Convertor IPI-910

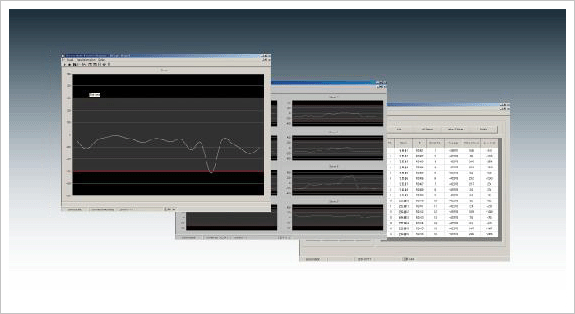

Monitoring Program IPI-700
Features
- Real time Electrostatic charge measuring(every 0.3 secs)
- Real time communication with PC
- Measuring range: 0 ~ +/- 19.99 KV
- Data logging, storage, filing etc
- Max. 255 points monitoring
- Set function of error range/sensors
- RS-422, UT cable connection(RJ-45)
- Input Voltage: 75 ~ 275 VAC(IPI-720), 24V(IPI 721)
- Dimension:
- IPI-720 -> 250(W) X 355(D) X 105(H)mm/3.55Kg
- IPI-721 -> 42(W) X 22(D) X 67(H)mm/72g

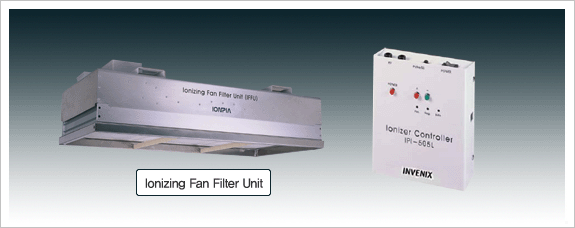

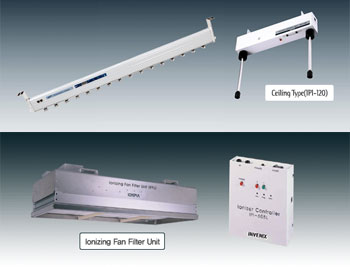

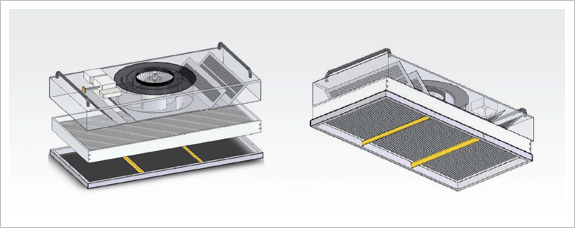

Pulse DC Ionizer Type IFFU Series
Pulse DC Ionizer Type IFFU Series
IPI-505L & IFFU series specifications
- Ion Generation: Corona discharge
- Voltage : DC Pulse type, +/- 5.0 ~ +/- 7.0 KV
- Ion balance control: Adjust HV output
- Ion Generation duty ratio: 0.5 ~ 3.0 secs
- Install distance: 300 ~ 1800mm
- Rating: DC 24V +/- 10%, Max. 300mA
- Material:
- Tungsten(99.99%)
- Acetal, Al(IPI-505L)
- Sus 304
- Function: Condition out put, status out put
- Environment: 0 ~50’C, 35 ~ 55% RH
