Insight k.k. provides the scanning acoustic microscope that was distributed by ARIATec. The following is the products for your reference.
Contact us
Close
InsightScan-202
InsightScan-202
Features
- High precision scanning by use of extremely low noise linear servo motor on the scan axis
- High-speed scanning at up to 500 mm/sec
- Specific low-vibration data acquisition mode integrated
- High scan resolution of down to 0.1 µm on all three x-, y-, and z-axis
- Simultaneous pulse-echo and through transmission acquisition supported
- Removable water tank for easy cleaning
- Scan mechanics can be used for other than water immersion techniques
Specifications
+ Scan area:
- Size: 200 x 150 mm
- Resolution: 0.1 µm
+ Focus axis
- Stroke: 50 mm
- Resolution: 0.1 mm
+ Drive system
- X-axis: Linear servo motor
- Y-axis: Stepper motor
- Z-axis: Stepper motor
+ Instrument size: 495 x 386 x 450 mm (W x D x H)
+ Weight: 31 kg / 68.3 lbs
Close

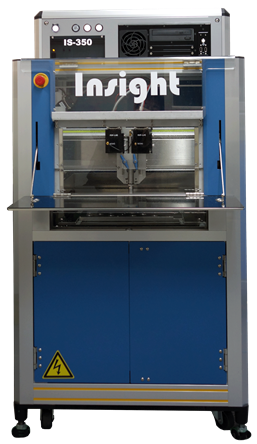

InsightScan-350
InsightScan-350
Features
Powerful scan technology
- High speed technology: 1000 mm/sec scan speed, 500 MHz receiver bandwidth, 3 GHz data sampling rate
- Dual channel data acquisition for minimizing the acquisition time on one sample, or for simultaneous data acquisition on 2 different samples
- Simultaneous pulse-echo and through transmission acquisition supported
- Up to 6 axis control, including 2-fold transducer tilt for wedge and contour scans
Advanced software features
- Real time full waveform acquisition: Collected data allow offline rescanning of the sample with different gate settings
- Advanced analysis features: Generation of virtual B-scans and tomographic C-scans from stored data files
- Slice scan for acquisition of a virtually unlimited number of C-scans on different depth levels simultaneously
- Multi-lingual software in English, Japanese, Chinese, French, German, …
Wide application range
Semiconductor and microelectronics
- CSP and Flip Chip underfil void evaluation and delamination analysis
- Power semiconductor integrity evaluation
- Internal defect inspection: Inclusions, cracks, die tilt
- Interface evaluation of bonded wafers
Material analysis
- Inclusion, crack and void detection in metals, plastics, resin
Interface analysis
- Void evaluation in welds and brazed interfaces
- Electrostatic chuck void detection
- Delamination of composite materials
- Interface analysis on heterogeneous assembled materials
Specifications
+ Scan area
- Size: 350 x 350 mm
- Resolution: 0.5 µm
+ Focus axis
- Stroke: 50 mm
- Resolution: 0.5 mm
+ Data collection system: Fully digital
+ Scan speed: Up to 1000 mm/sec
+ Pulser/receiver bandw. : 0.5 … 500 MHz
+ Drive system:
- X-axis: Linear servo motor
- Y-axis: Stepper motor
- Z-axis: Stepper motor
+ Number of axis: Up to 6
+ Size (W x D x H): 680 x 800 x 1320 mm
Close
FlexScan
FlexScan
FlexScan is the scanning acoustic microscope that adapts to your needs. Whether your samples are extremely large, of very complicated shape, or need high scanning resolution, Insight’s FlexScan platform will allow building the acoustic microscope that solves your experimental problem. Due to the wide range of applications no standard characteristics are given for the FlexScan instruments.
- Tank and scan dimensions can be adapted to all requirements
- Up to 8 axis control including 2-fold transducer tilt for wedge and contour scans, sample height variation and sample rotation
- Flexible drive technology by customized choice of servo or stepper motor
- High-speed scanning at up to 500 mm/sec
- Simultaneous pulse-echo and through transmission acquisition supported
- Dual channel data acquisition for minimizing acquisition time on one sample or simultaneous acquisition on 2 different samples
- Multilingual software: English, Japanese, Chinese, French, German, …
